Description

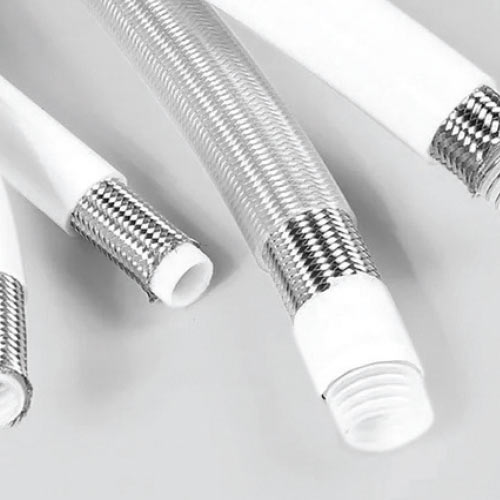

Flexo is having ultra smooth bore which enhances superior flow properties and least adhesion to particulates. Flexo is having capacity to withstand high pressure along with greater chemical resistance. The silicone outer layer cover acts as insulation to high temperature and keeps surface dust free.
FEATURES:
• Smooth silicone cover provides enhanced safety to user.
• Excellent chemical resistance.
• Easy cleaning.
• Sterilization by autoclave, Ethylene oxide gas and Gamma radiation.
• Available with SS 316L tri-clovers end or without T/C end.
| APPLICATION: |
| Pharmaceutical fluid transfer. |
| Beverage plants. |
| Mega factories for transferring corrosive fluids. |
| Cosmetic industries. |
| High temperature fluid transfer. |
| High pressure fluid transfer. |
| Battery acid plants. |
NOTE: Customization of color available. Also available in platinum & peroxide cured silicone
ULTRASIL FLEXO HOSE SIZES
| Catalogue No. | Size (mm) | Size (Inch) | Working Pressure (Bar) | Bursting Pressure (Bar) | Vacuum (mm Hg) | Bend Radius (mm) | |
| ID | OD | Inch | |||||
| SH-F-6013 | 6 | 13 | 1/4” | 120 | 360 | 760 | NA |
| SH-F-9016 | 9 | 16 | 11/32” | 105 | 315 | 760 | NA |
| SH-F-12020 | 12 | 20 | 1/2” | 90 | 270 | 760 | NA |
| SH-F-16024 | 16 | 24 | 5/8” | 85 | 255 | 760 | NA |
| SH-F-19027 | 19 | 27 | 3/4” | 60 | 180 | 760 | NA |
| SH-F-25035 | 25 | 35 | 1” | 40 | 120 | 760 | NA |
| SH-F-32042 | 32 | 42 | 11/4” | 35 | 105 | 500 | NA |
| SH-F-37047 | 37 | 47 | 11/2” | 35 | – | 500 | NA |
| SH-F-50062 | 50 | 62 | 2” | 30 | – | 400 | NA |
